This article discusses the lubrication of the Philips fully automatic coffee maker EP1221, mainly recording the lubrication of the three main components of the brew group(brewing kit). Figures 1 and 2 show the general process.

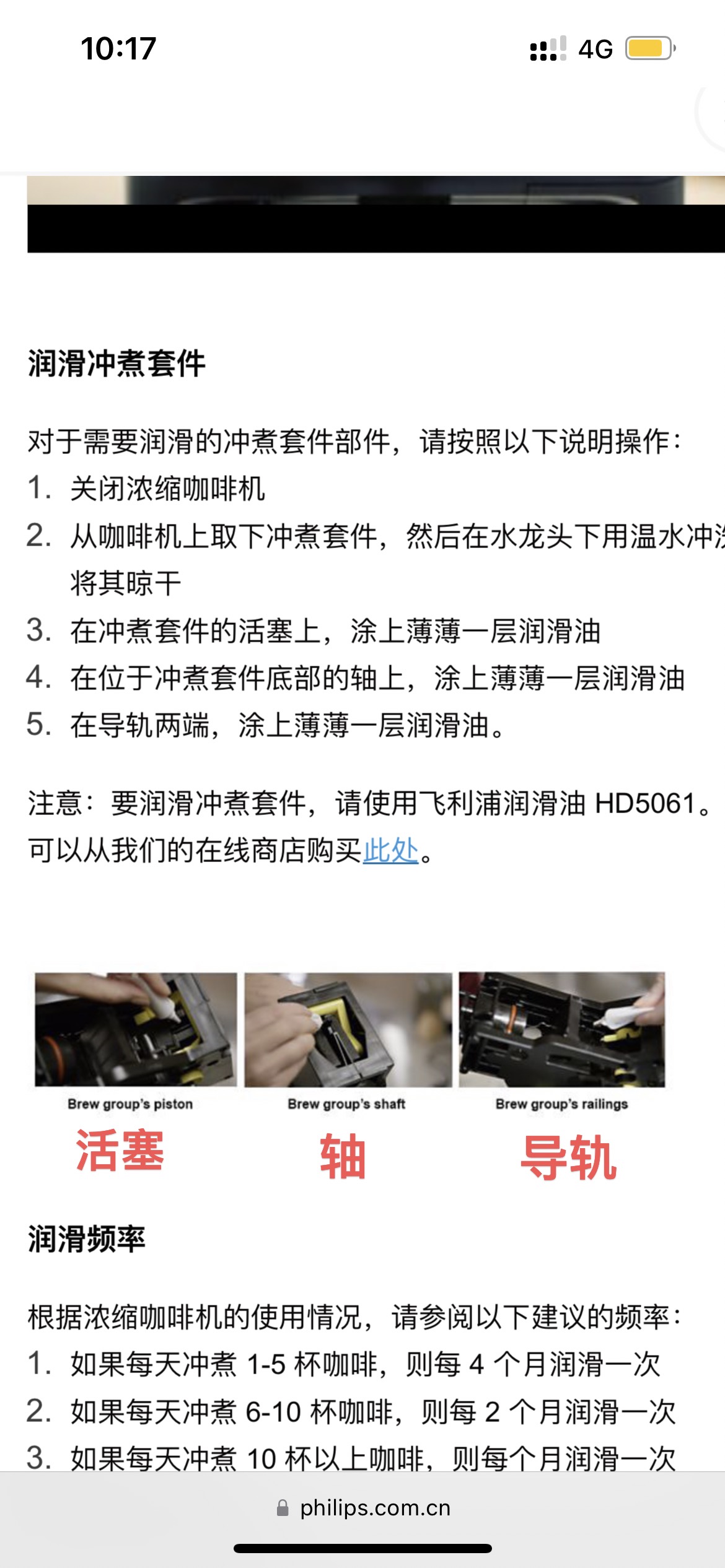

Figure 1 Instruction

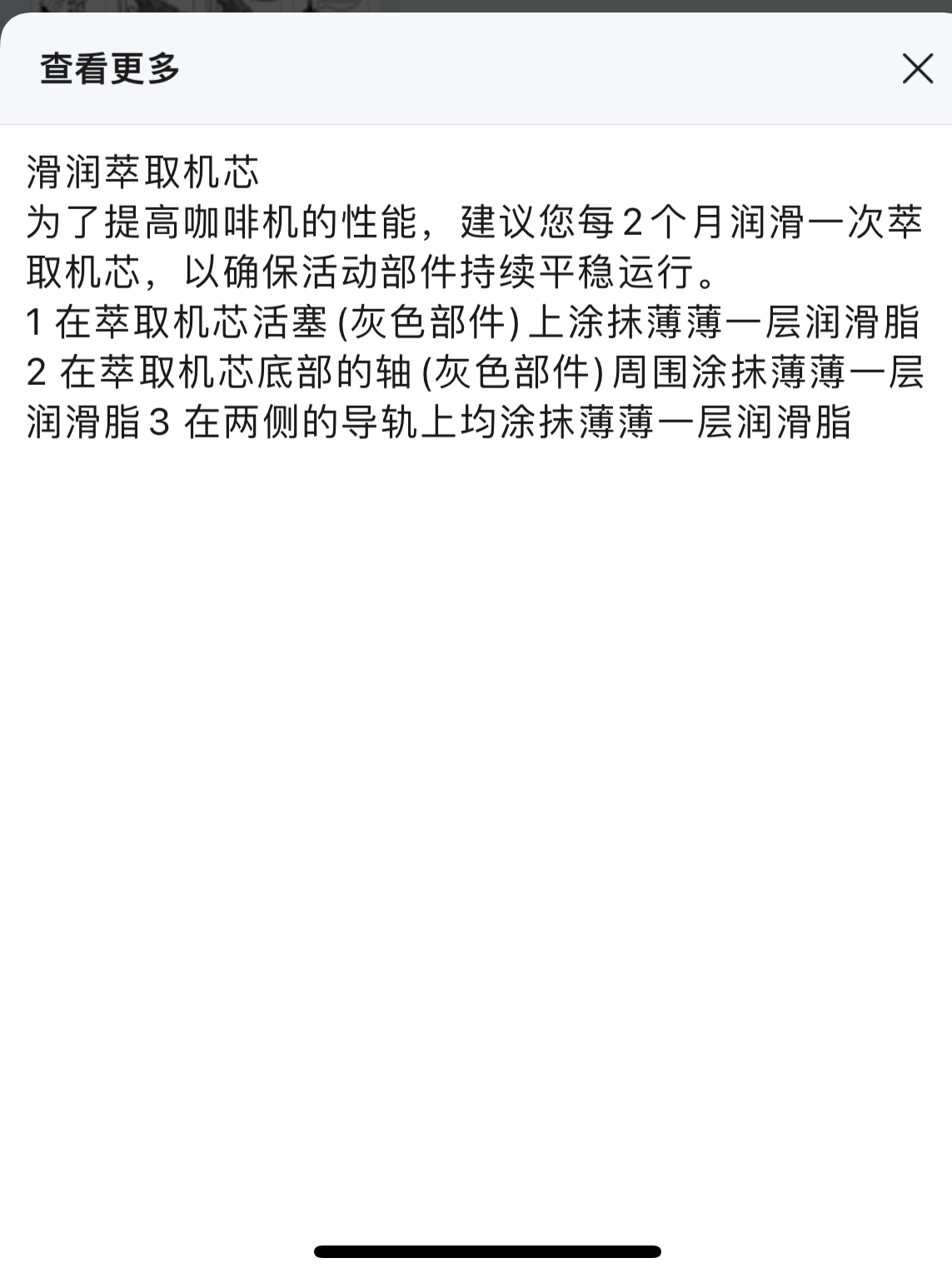

Figure 2 Instruction 2

0. Lubricant Preparation
According to [1], HD5061 lubricant is used.

1. Piston Lubrication
As shown in Figure 3, apply lubricant to the piston.

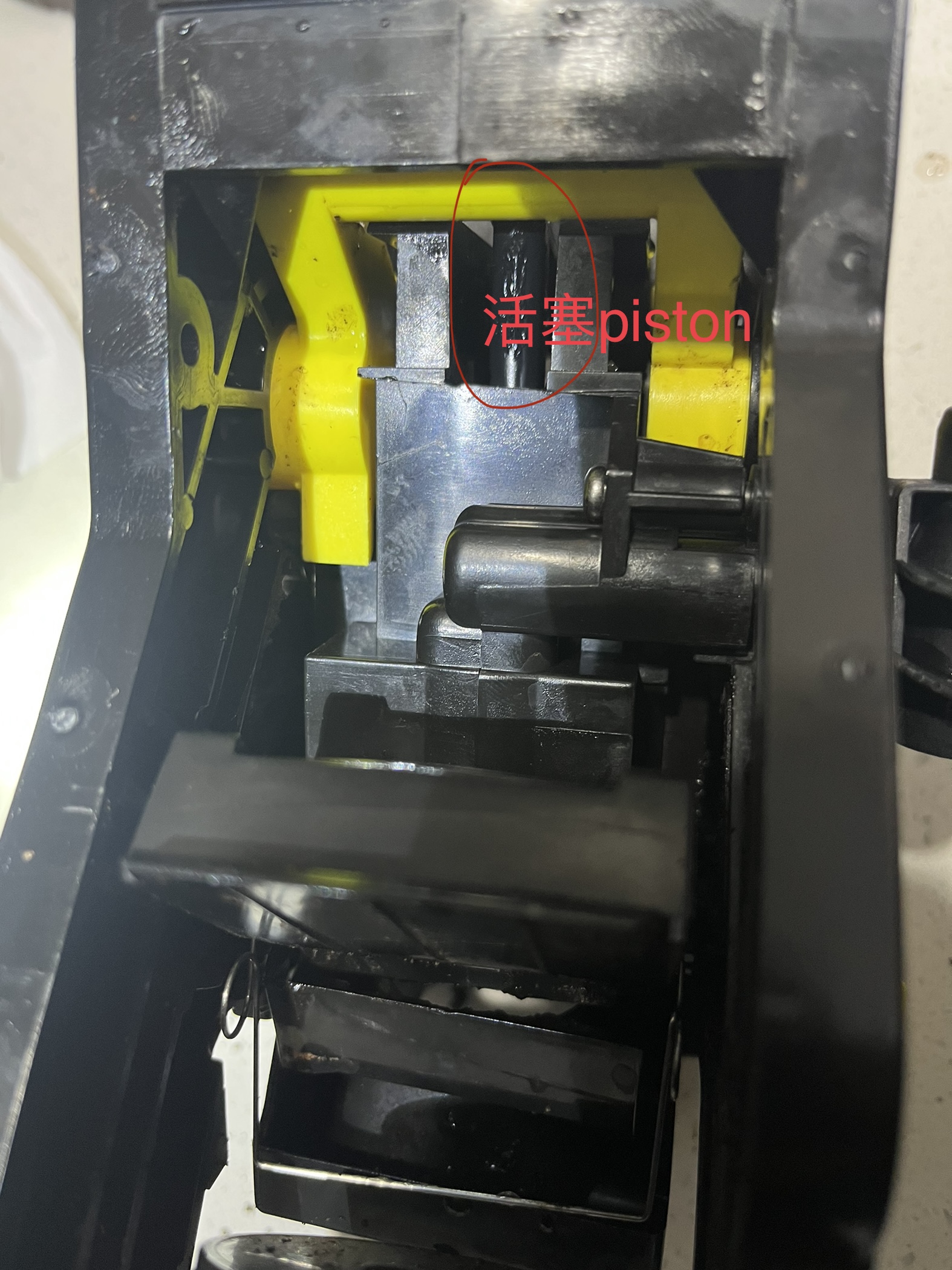

Figure 3 Piston



2. Lubrication Around the Piston
As shown in Figure 4, facing the bottom of the brew group, apply lubricant around the piston, mainly in the small grooves.

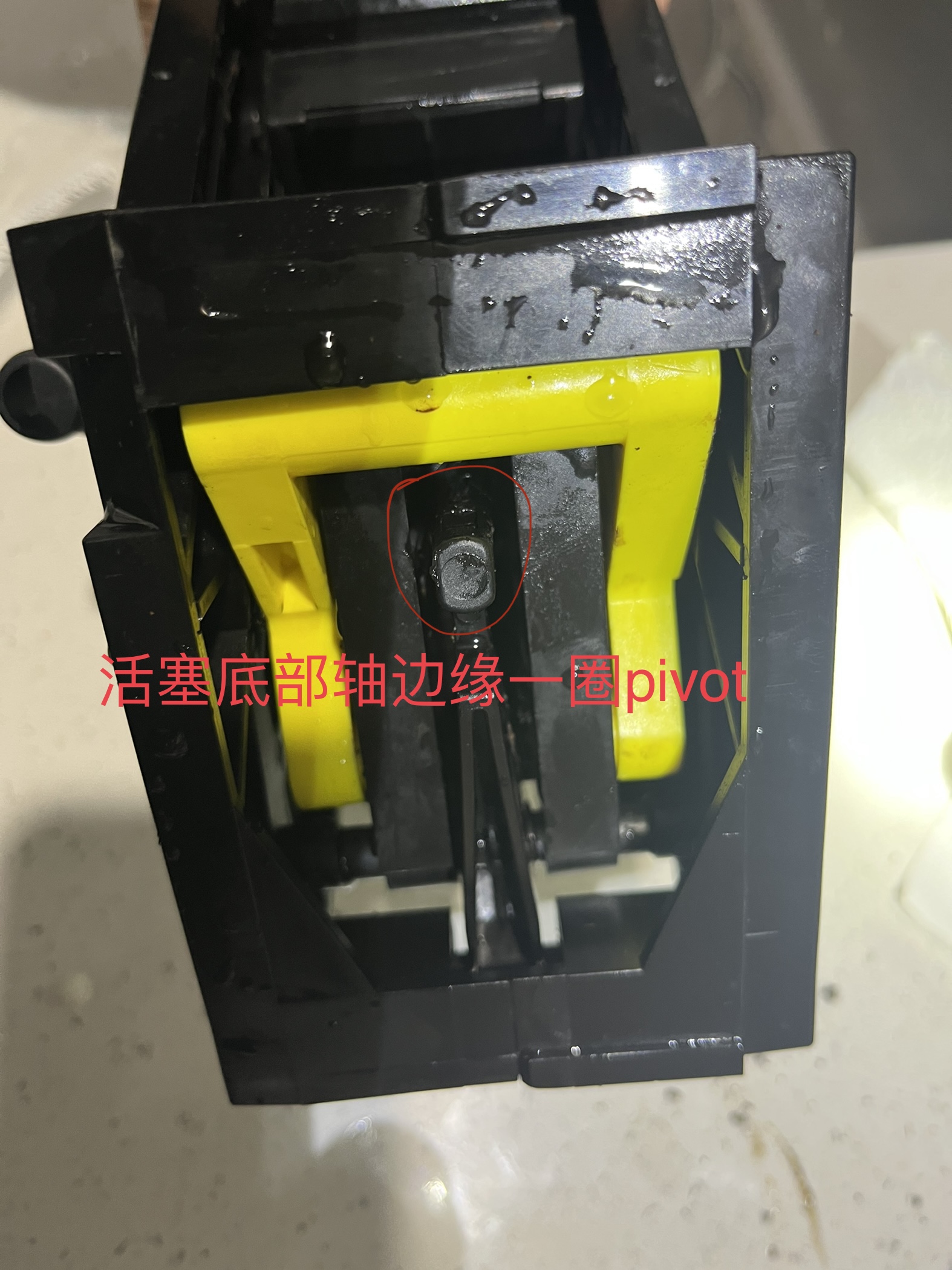

Figure 4  Shaft



3. Lubricating the Guide Rails(Railing)
As shown in Figures 5 and 6, apply lubricant to the guide rails on both sides. Pay attention to the moving parts and make sure to apply lubricant to the entire guide rail.

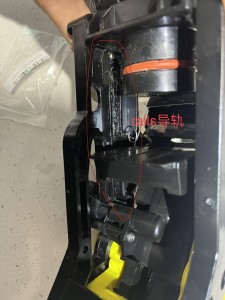

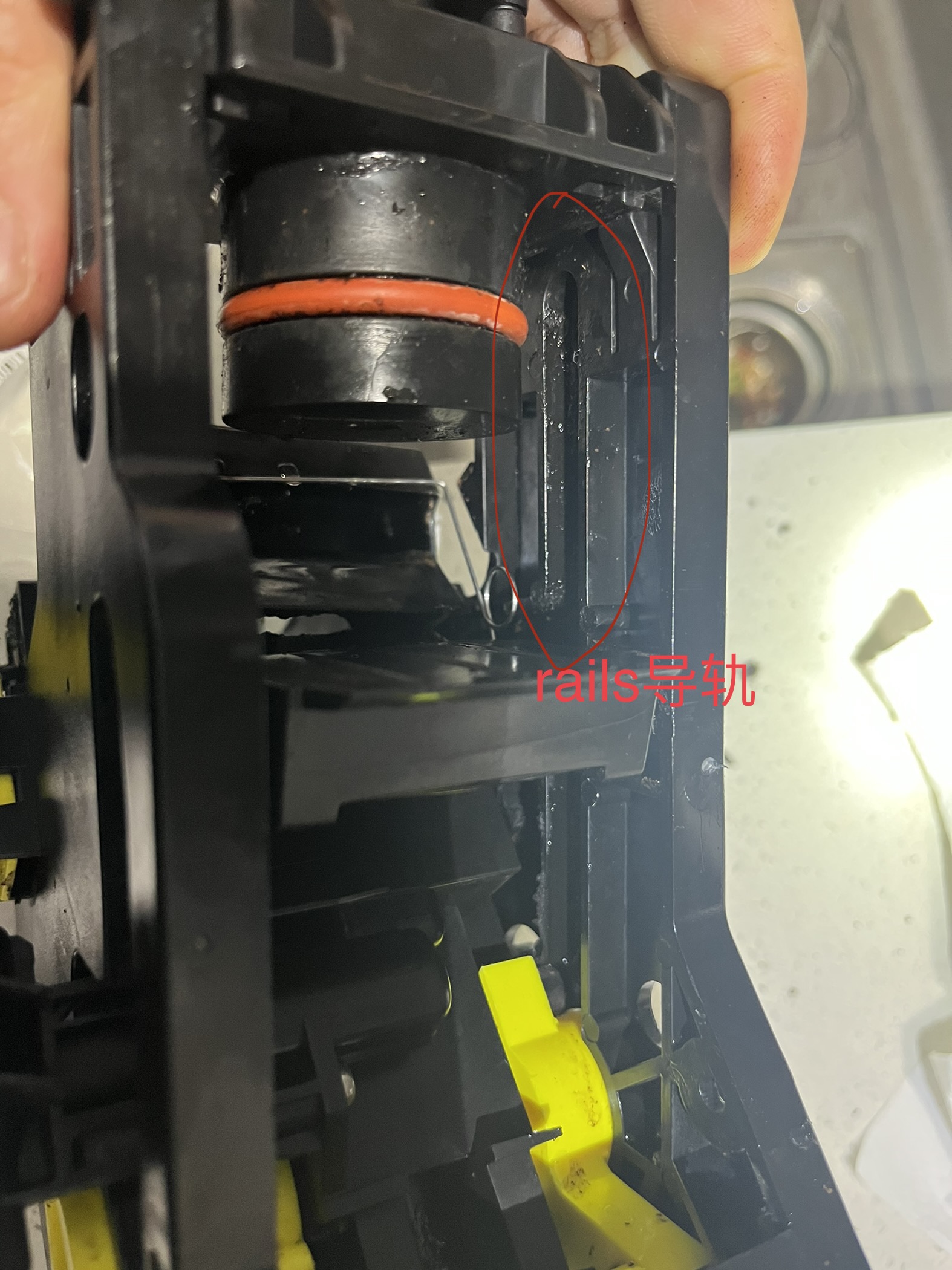

Figure 5 Railing 1

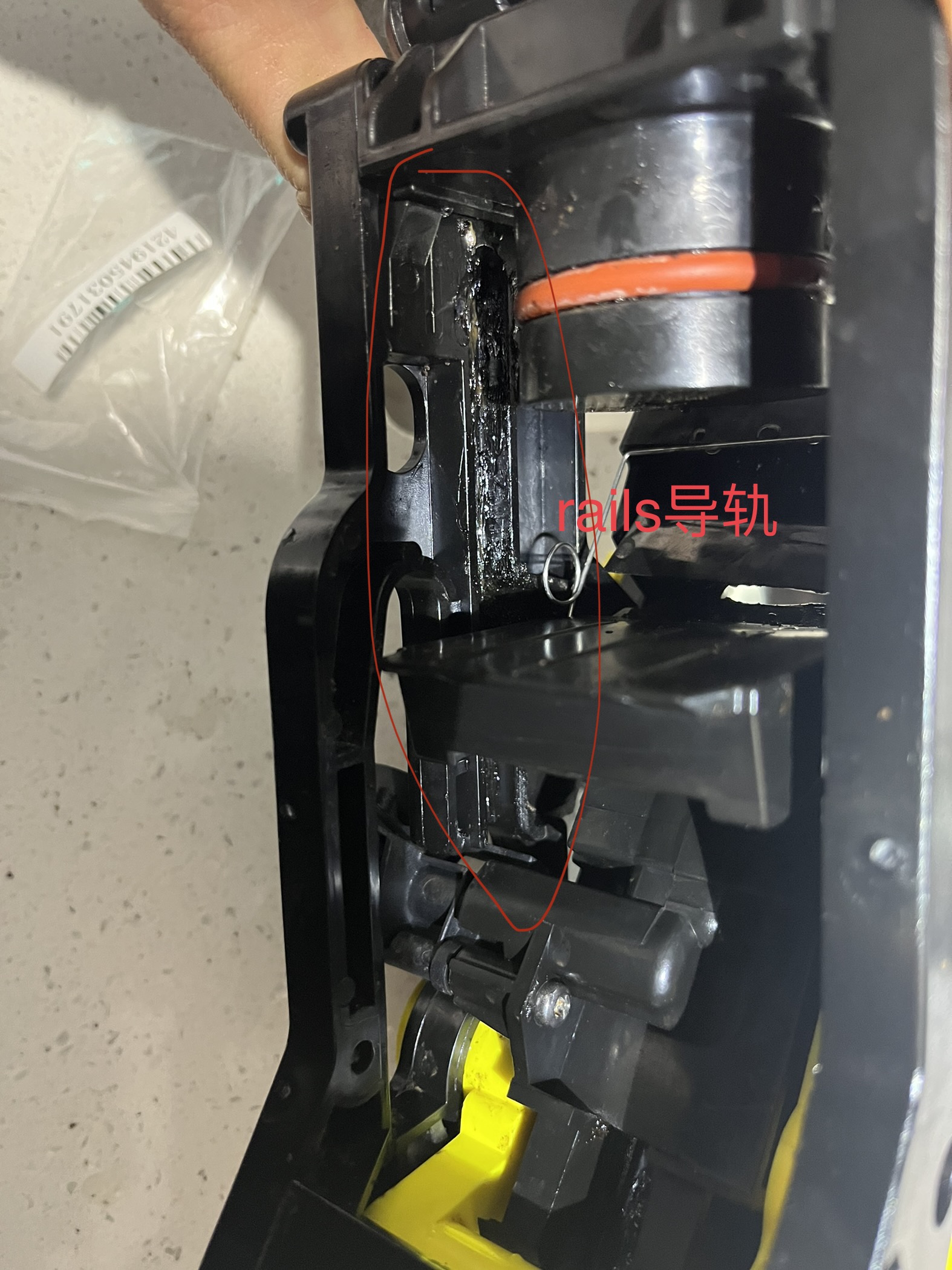

Figure 6 Railing 2



4. Post Maintenance
Align the round yellow knob of the brew group with the mark and install it back into the coffee maker.

References
1. https://www.philips.com.cn/c-p/EP1221_62/series-1200-fully-automatic-espresso-machines/support#XC000004177
